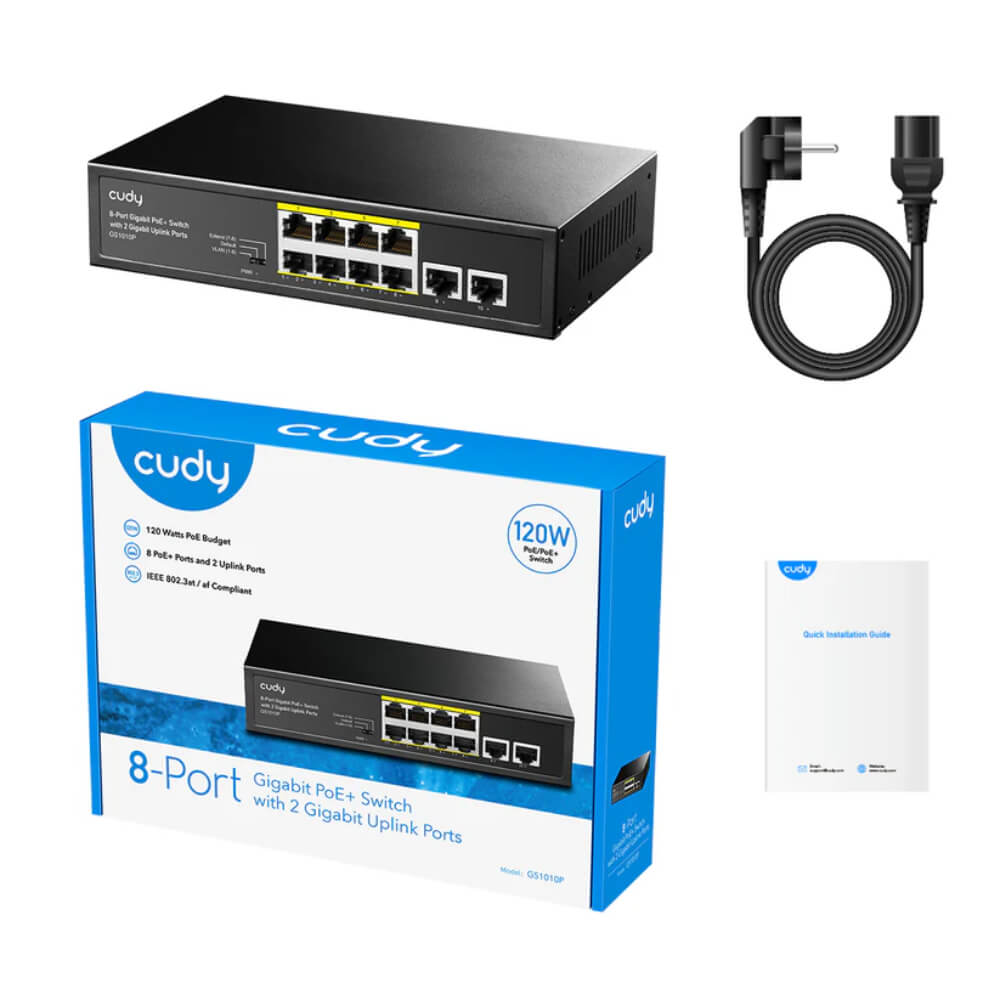

Cudy GS1010P 8-Port PoE Gigabit Switch 120W

Cudy GS1010P 8-Port PoE Gigabit Switch

A reliable, fanless 8-port PoE Gigabit switch delivering up to 120W total PoE power — ideal for CCTV systems and VLAN setups. Supports IEEE 802.3af/at PoE standards with up to 32W per port.

Key Features

• 8 PoE ports (ports 1–8) + 2 uplink ports — 10 × 10/100/1000Mbps RJ45
• PoE Standard: IEEE 802.3af/at
• Total PoE Budget: 120W | Max per port: 32W
• Key Functions: CCTV & VLAN support
• Fanless design for silent operation
• Jumbo Frame: 9216 Bytes | Bandwidth: 18 Gbps
• Packet Forwarding Rate: 13.4 Mpps
• MAC Address Table: 8K (auto-learning)
• Transfer Mode: Store-and-forward
• Green Energy Saving: IEEE 802.3az
• Surge Protection: ±4KV | ESD: Contact 6KV, Air 8KV
• MTBF: >50,000 hours

Network Media

• 10BASE-T: UTP Cat 3/4/5 (≤100m)
• 100BASE-TX: UTP Cat 5/5e (≤100m)
• 1000BASE-T: UTP Cat 5e/6 (≤100m)

Technical Specifications

• Packet Buffer: 2Mbit
• Dimensions: 220 × 150 × 44mm | Weight: >1kg
• Power Supply: 100–240V AC, 50/60Hz, 120W
• PoE Power Mode: Mode A — Anode 1/2, Cathode 3/6
• Indicators: PWR, LNK/ACT, PoE

Environmental

• Operating Temp: 0°C – 40°C | Storage: -40°C – 70°C
• Operating Humidity: 10%–90% (non-condensing)
• Storage Humidity: 5%–90% (non-condensing)
